How we picked
We ranked on fitment first, compound second, and pairs per box third, in that order, and the order is the whole argument. Compound is a number of minutes of fade you can be annoyed about. Fitment is the difference between a part that works and a part that goes in a drawer.
Three things decide fitment, and all three are readable off your own bike:
- The pad outline.Every caliper family takes its own shape. The most common shape in this bracket is the small two-piston pad that third-party sellers list as fitting “TRP / Tektro / Shimano” — one of the listings on this page is explicitly sold as being for the Shimano B01S, B03S and B05S pads interchangeably, which tells you those three are one fitment group with different compounds. Compare outlines, not names.
- Two pistons or four. A four-piston caliper takes a longer pad and there is no adapting one to the other. Most value e-bikes are two-piston; bigger fat-tire and e-MTB builds are where four-piston turns up, and it is the reason the TRP pad is last on this list rather than first despite being the best compound here.
- Cable or fluid. Mechanical (cable-pulled) calipers such as the Tektro units on many sub-$1,000 bikes use their own pad shapes, separate from the hydraulic families. Our brakes explainer covers which system you have and how to tell by feel if you are not sure.
Only then the compound, which is the part everyone shops on first. And the honest summary is short: resin and organic are quiet with a strong bite from cold and wear faster when hot, semi-metallic takes more heat and makes more noise, and sintered metallic takes the most heat, is the loudest, needs a proper bed-in and is hardest on rotors. On a heavy bike ridden on the flat, resin is fine. On a heavy bike ridden down long hills with cargo, it is the compound that gives up first.
What each one publishes
| Pad | Listed fitment | Compound | In the box | Maker’s own part |
|---|
| Shimano B05S-RX | Shimano B-series (two-piston) | Resin | 1 pair (one wheel) | Yes - Shimano |
| Tektro E10.11 | Tektro MD-M500 (mechanical) | Organic | 2 pairs (one bike) | Yes - Tektro |
| BUCKLOS BRP-02 | Zoom; Shimano Deore / Hone / Alfine / Saint | Not published | 1 pair (one wheel) | No |
| AGPTEK Semi-Metal | TRP / Tektro / Shimano | Semi-metallic | 4 pairs (two bikes) | No |
| TRP 4-Piston Sintered | TRP four-piston calipers | Sintered metallic | 1 pair (one wheel) | Yes - TRP |
Read the “in the box” column before you compare prices. Three of these five are a single pair, which is one wheel, so the cheapest-looking pad is not always the cheapest way to stop the bike. A front-and-rear change on the Shimano needs two boxes; the Tektro is one box for both wheels; the AGPTEK multipack is four pairs, which is two complete bikes or two years of one.
Why an e-bike is harder on pads than a bicycle
This is not marketing, it is arithmetic, and the federal brake standard makes the comparison easy to see. The CPSC’s bicycle requirement is tested with a 150 lb rider at 15 mph, stopping within 15 feet, with the pads required to contact the braking surface at 10 lb or less of lever force. That is the envelope a bicycle braking system is designed and certified around.
Now put the bikes in our own registry into it. Published two-wheel weights here run from 49.6 lb (the Jasion EB5) to around 75 lb, and the trikes are 93 to 110.2 lb. Add a 180 lb rider and a loaded pannier and the moving mass is roughly 40 to 60 percent higher than the test rider-plus-bicycle. Kinetic energy also rises with the square of speed, and a Class 3 bike like the GoTrax F3 assists to 28 mph rather than 15. Braking is the business of turning all of that into heat, in two small pads.
Three consequences follow, and all three are things owners actually report:
- Pads wear out faster than you expect. A set that lasted years on a bicycle can be gone in a season on a heavy bike used in traffic, because every stop is a bigger stop.
- Heat, not wear, is what ruins a descent. Resin and organic compounds lose bite as they get hot, which is why the long hill is where you notice the compound choice. Our hill-climbing picks are the same bikes that have to come back down.
- Mechanical calipers need more attention. Cable systems do not self-adjust for pad wear the way hydraulics do, so on a cable brake the lever travel grows as the pad thins and you have to take it up by hand.
Worth knowing: the CPSC standard sets a stopping distance for the whole system. It does not specify a pad compound, a pad thickness or a wear limit, and no listing on this page publishes one either. Where state law gets specific it is also about outcome rather than parts — New York’s equipment statute, for example, requires a brake able to skid the braked wheel on dry, level, clean pavement. Nothing in either rule tells you when your pads are done. That part is on you.
How to tell your pads are done, without a spec sheet
Since none of these listings publishes a wear limit, use the checks that do not need one:
1. Look at the friction material, not the whole pad.A pad is a metal back plate with friction material bonded to it. The back plate does not wear; the material does. When the remaining material is down to around the thickness of a credit card, order. When you can see metal through it, stop riding the bike — a backing plate against a rotor destroys the rotor and barely slows you down.
2. Watch the lever.On a hydraulic brake the lever should firm up in the same place every time; a lever that comes closer to the bar each week is wear (or air). On a mechanical brake, growing lever travel is the normal wear symptom and the barrel adjuster is the normal fix — up to the point where the pad is simply out of material.
3. Listen for the change.A new squeal in the wet usually means contamination — chain lube or degreaser on the rotor. A dry grinding noise usually means the material is gone. Use a clean rag and isopropyl alcohol on the rotor before you condemn a pad, and keep chain lube off the disc in the first place.
4. Put it on the schedule. Pad thickness is a monthly look on a heavy bike, and more often in winter grit. It sits with the other five-minute checks on our maintenance checklist.
Fitting them without wrecking something
Pad replacement is one of the genuinely easy jobs on an e-bike — it is a retaining pin or clip, two pads and a spring — with three ways to get it wrong:
- Do not squeeze the lever with the wheel out. On a hydraulic brake the pistons will come out further than you want and you will be fighting them back. Fit the new pads, then put the wheel in, then pump the lever.
- Do not touch the friction faces, and do not reuse a tired spring. Fingerprints are contamination. The Shimano pick here includes a new spring for exactly this reason.
- Bed them in before you need them. New pads are at their worst in the first mile. Ride somewhere flat and quiet and make ten firm, controlled stops from around 15 mph, letting the brake cool between them, before you take the bike down a hill. Sintered pads need this more than resin, not less.
Caliper and rotor bolts are the fasteners to be careful with, because they thread into soft alloy and they are what holds a brake onto a heavy bike. Use the figure in your manual and a torque wrench rather than feel. If you do not own the basic hex and T25 tools yet, a boxed tool kit covers this job and most of the first year.
What we would skip
Any pad sold purely as “universal.” There is no universal disc pad. A listing that will not name a caliper or a pad code is telling you it does not know what you have either.
Sintered pads bought for a flat commute. You pay more, you get more noise and more rotor wear, and you never reach the heat where the compound earns its money.
A 25-pair bulk pack of an unverified shape. These exist, they are cheap per pair, and if the shape is wrong you have bought a lifetime supply of the wrong part.
New pads onto a scored or warped rotor. If the rotor surface is grooved or below its own stamped minimum thickness, new pads will not fix the noise or the feel. Rotors are a separate purchase and a separate decision.
What we would actually buy

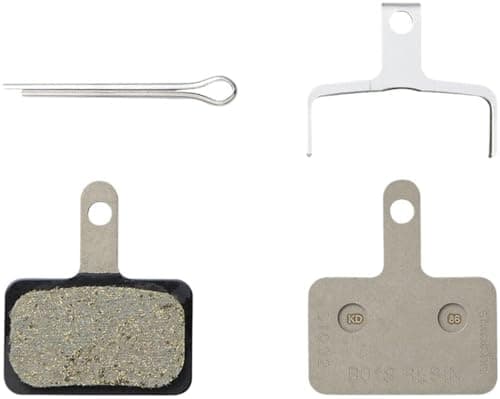

Shimano two-piston hydraulics: the genuine B05S-RX. Resin on a stainless back plate, spring in the box, and no fitment argument. Order two if you are doing both wheels, which you probably should be.

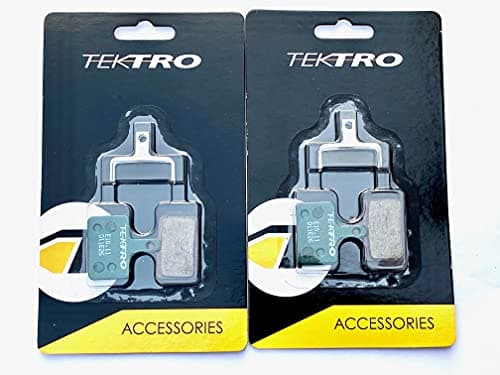

Tektro mechanical discs: the genuine E10.11, two pairs. The most expensive pick here per pair, and the only one that names the caliper it is made for and covers the whole bike in one order.

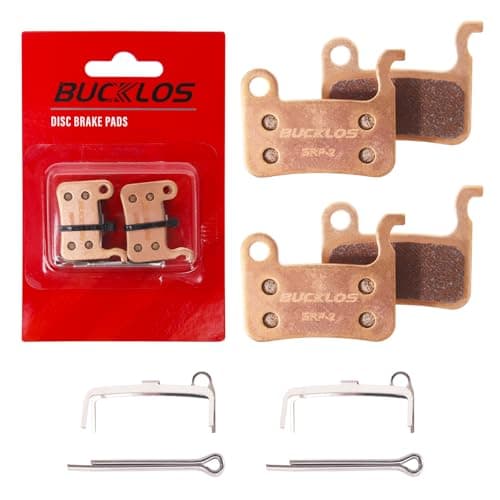

Zoom calipers: the BUCKLOS BRP-02.Not glamorous, and the listing will not say what the compound is — but it is the pad that fits the caliper your bike actually came with, and a pad code means your next order lands on the same shape.

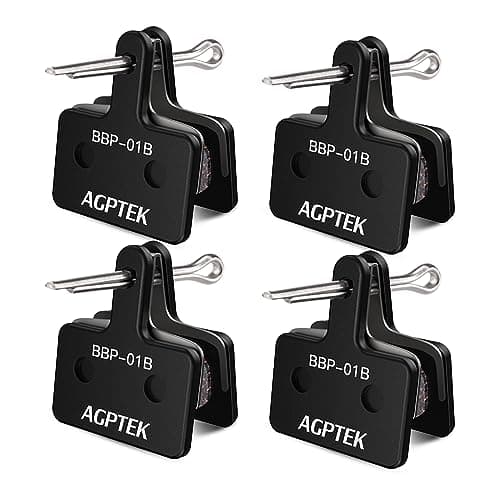

The common two-piston shape, bought by the year: the AGPTEK four-pack. Semi-metallic, noisier than resin, and far and away the lowest cost per pair. Confirm the shape with one pair before you rely on four.

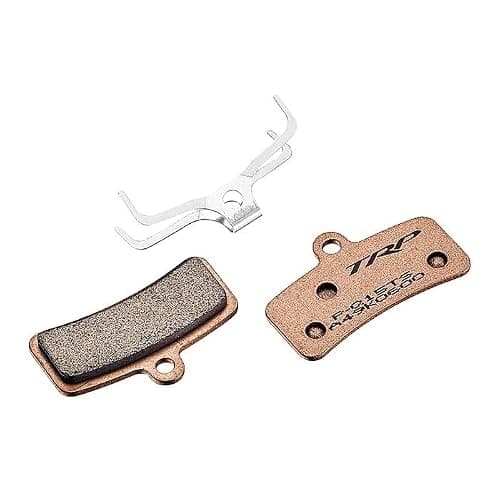

Four-piston calipers and real hills: the TRP sintered pad. The one pad here from a brake maker in the compound that handles sustained heat. Check that you have four-piston calipers first, because this will not fit a two-piston one.
Pads are about the cheapest part on the bike and the only one whose failure mode is not stopping. If you are putting together a first-year shopping list, they belong on it next to a lock and lights — see our e-bike accessory picks for the rest, and our weight guide for why your bike is harder on consumables than the one you had before.
