How we picked
We ranked on fitment first and published load second, in that order, and the order is the argument. Load capacity is a number you can be disappointed by. Fitment is a number that makes the part useless.
Three fitment facts decide everything:
- Rear mount or center mount. A rear-mount (side) stand bolts to a small plate welded to the left chainstay, behind the bottom bracket and ahead of the rear axle. A center-mount stand clamps to a plate directly under the bottom bracket. Your frame has one or the other, not both, and a stand for the wrong one has nowhere to go.
- Bolt-hole spacing, for rear mounts. The plate has two holes. Measure center to center. 18 mm and 40 mm (1.57 in) are the two common figures, and the stand you buy must match. This is the single most common reason a kickstand gets returned, and it is the reason the Sataway earns a place on this page for saying so in its listing name.
- Wheel size, which sets the length you need. A stand specified for 26-29 in wheels is too long for a 20 in folder and too short to hold a fat-tire 20 x 4 in build upright at a useful angle. Every stand here publishes a wheel range; check yours against it.
Then, and only then, the load figure. We compared each published capacity against the published weights of the bikes in our own registry, which run from 49.6 lb (the Jasion EB5) to 75 lb (the Heybike Mars 2.0) for two-wheel bikes, with the trikes at 93 to 110.2 lb. Five of the nineteen e-bikes and trikes in the registry publish no weight at all, which means for those bikes you cannot check a kickstand rating against anything — a gap worth knowing about before you shop.
What each one publishes
| Stand | Mount | Bolt spacing | Published load | Wheel range |
|---|
| RBRL E-Bike Kickstand | Rear chainstay, 2-hole | 1.57 in (40 mm) | 187 lb | 26-29 in |
| BV Heavy Duty for E-Bike | Center | n/a (center plate) | 77 lb | 24-28 in |

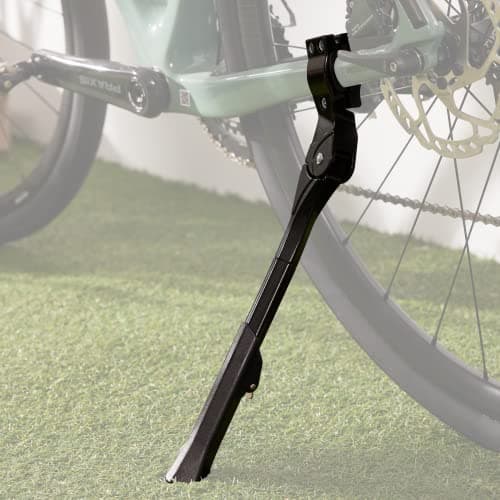

| N+1 Kickstand | Rear side | Not published | Not published | 26-29 in |
| Lumintrail Double Leg | Center, two legs | n/a (center plate) | Not published | 24-29 in |
| Sataway Rear Mount | Rear, 2-hole | 18 mm only | Not published | 26-29 in, 700C |
Three “Not published” entries in the load column is the state of the category, not an oversight in our research. And the two figures that do exist are not comparable to each other in any rigorous way, because neither listing says whether the number is the weight of the bike it will hold up or the force the leg is rated to take. Those are different quantities: a side stand holds a leaning bike, so it carries a fraction of the bike’s weight as a vertical load and a share of it as a bending moment. We report both figures as published and we do not convert between them, because converting would mean inventing the assumption that does the work.
Why a bicycle kickstand fails on an e-bike
It is not usually that the leg snaps. Four things happen instead, and all four are about geometry and mass rather than material:
- The footprint is too small for the weight. A 50 lb bicycle leaning on a narrow foot is stable on tarmac. A 70 lb e-bike with a 10 lb battery high in the frame has more mass and a higher center of gravity, and the foot sinks into gravel, grass or hot asphalt and the bike goes over.
- The lean angle is wrong once the bike is heavier. A stand that is slightly too long holds the bike nearly upright, which feels fine until a breeze or a passing van pushes it past vertical and it falls to the other side. This is why every pick here is length-adjustable.
- Loading changes everything. Hang a full pannieron one side of a bike that is already leaning that way and the margin disappears. If you shop by bike — see our grocery guide— this is the failure you will actually meet.
- The mount plate bends before the leg does. On a cheap frame the welded plate is the weak link. A stand that spreads load across two bolts at the correct spacing is kinder to it than one shimmed onto the wrong spacing with a washer stack, which is the other reason spacing matters.
Rear mount, center mount, or two legs?
Rear side mount is what most value e-bikes come with and what most owners should replace like for like. It is light, it is out of the way of the cranks, and it does not interfere with a chainstay-routed motor cable. It holds the bike leaning.
Center mount puts the stand under the bottom bracket, which gives a more central and often more stable lean, and on a frame with a center plate it is the only option. Watch two things: the legs are closer to the cranks, so a long leg can catch a pedal at the bottom of the stroke, and on a mid-drive conversion there may be no clearance at all. Our motor guide explains which bikes that applies to.
A double-leg center stand is a different tool again. It holds the bike upright on both legs and, on many frames, lifts the rear wheel clear of the ground. That is what you want for cleaning a chain, fitting a rack or loading both panniers without the bike walking off its stand. The trade is weight and crank clearance, and the Lumintrail here publishes no load figure. If you mainly want the bike held up to work on it, a dedicated repair standis the better purchase — that page covers the stands whose published capacity actually clears an e-bike.
How to measure your frame in two minutes
1. Find the plate. Lay the bike on its right side (chain up) and look at the left chainstay, just behind the bottom bracket. A rear-mount frame has a flat tab with two threaded holes. A center-mount frame has a flat pad directly under the bottom bracket shell instead.
2. Measure center to center. Put a steel rule across the two holes and read the distance between their centers. You are looking to land on 18 mm or 40 mm; anything in between means measure again, because those are the two spacings the aftermarket actually sells.
3. Note your wheel size and your bolt size.The wheel size is printed on the tire sidewall. The bolt is usually M5 or M6 — most stands ship the bolt, but knowing which you have saves a second order.
4. Torque it properly when you fit it. This is a frame fastener on a heavy bike that vibrates, and both over- and under-tightening it are real failures: strip the thread in a soft alloy plate and there is no second chance. Use the figure in your manual and a torque wrench, and check it again after the first week along with everything else on the maintenance checklist.
What we would skip
Any stand with no published wheel range.Length is the whole game on a kickstand and “universal” is not a length.
Plastic-footed bicycle stands sold on price alone. The foot is the part that sinks, and the one that cracks when the bike is dropped onto it once.
A stand for a fat-tire bike that is specified for 26-29 in wheels. A 20 x 4 in fat-tire build sits low and wide, and a stand sized for a 29er puts it at an angle that works against you. If that is your bike, see our fat-tire picks for the frames involved and buy a stand specified for 20 in wheels.
Using a kickstand as a work stand. It is a prop, not a lift, and an e-bike dropped off a kickstand lands on a derailleur, a display or a motor cable.
What we would actually buy

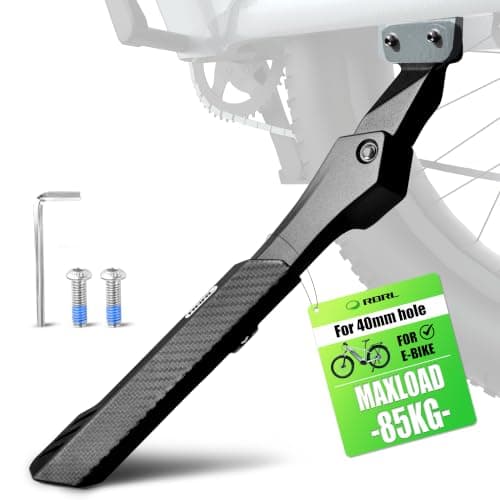

For a 40 mm rear-mount frame: the RBRL E-Bike Kickstand.It is the only stand here that publishes the two numbers that matter together — a 1.57 in (40 mm) two-hole chainstay mount and a 187 lb load capacity — and 187 lb is roughly two and a half times the heaviest two-wheel bike in our registry. Aluminum, height adjustable, 26-29 in wheels.

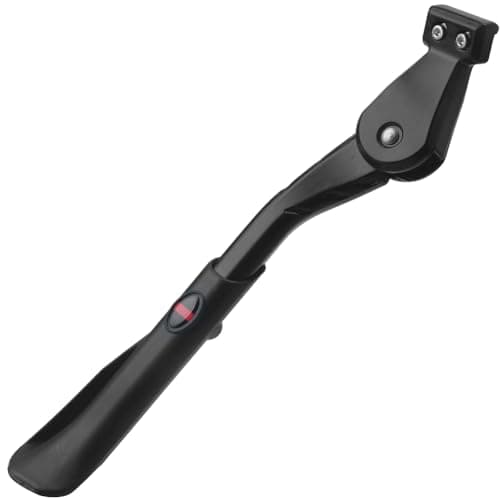

For an 18 mm frame: the Sataway rear mount. Same job, same adjustability, and it is the only listing in this whole category that puts its required hole spacing in the product name. It publishes no load figure, which is the price of being the stand that fits.

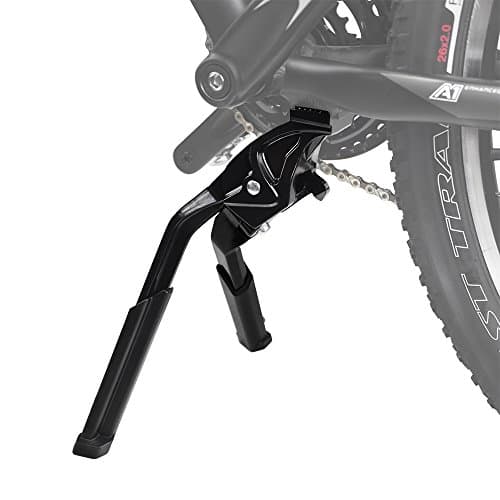

For a center-mount frame: the BV.The one established brand here, adjustable and foldable for 24-28 in wheels — and read the 77 lb support figure against your own bike’s published weight before you order, because on a 72 or 75 lb bike there is almost nothing left over.

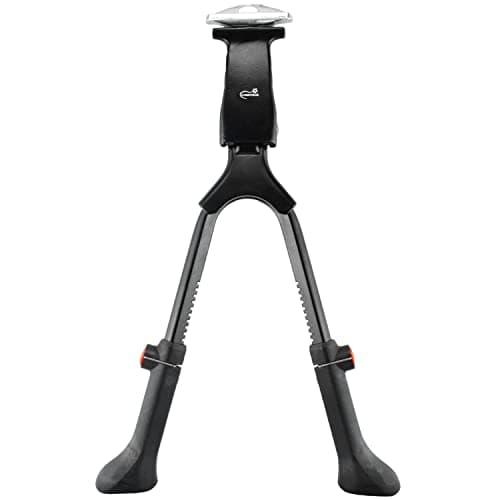

If you want the bike standing straight up: the Lumintrail double leg. Two legs, adjustable height, 24-29 in. It is the one that makes loading a pannier a one-handed job, and it publishes no capacity at all, so keep the loading sensible.
A kickstand is one of the cheapest parts on the bike and it prevents a dropped bike, and a dropped e-bike is a cracked display, a bent rotor or, at worst, a physically damaged battery pack — which the CPSC lists among the things that make a lithium pack unsafe. That is the actual argument for spending more than the minimum here. For the rest of the first-week shopping list, see our e-bike accessory picks.
