Why you cannot charge an e-bike with USB-C
Two reasons, and the first one ends the conversation on its own.
Voltage.An e-bike pack is 36 V, 48 V or 52 V nominal, and it is charged to 42 V, 54.6 V or 58.8 V respectively by a charger that holds a constant current and then switches to a constant voltage for the final tail. USB-C Power Delivery negotiates up to 20 V. There is no voltage in the USB specification that can charge a 48 V pack, and the pack’s BMS is specifically designed to refuse anything that is not the right profile. Our battery compatibility guidegoes through those four gates in detail, because the same logic is why you cannot use another bike’s charger either.
Energy. Suppose the voltage problem were solved by a converter. Here is what the arithmetic looks like, using the published pack capacities from our own registry and assuming perfect conversion, which never happens:
| Pack | Supply | Best-case time |
|---|
| 281 Wh (smallest in our registry) | 100 W USB-C PD | About 2 h 50 m at 100% efficiency |
| 499 Wh (48 V 10.4 Ah, typical) | 100 W USB-C PD | About 5 h at 100% efficiency |
| 672 Wh | 100 W USB-C PD | About 6 h 45 m at 100% efficiency |
| Any of the above | A phone charger at 18 W | 15 h to 37 h, before losses |
Those are our figures, not a manufacturer’s: watt-hours divided by watts, with no allowance for conversion losses or the constant-voltage tail. Add realistic losses and the 100 W column gets 15% longer, which is why our charge-time guide works in the same way from the supplied charger’s actual amps. And 100 W is the high end of USB-C PD; the charger in your pocket is more likely 18 to 30 W, at which point you are into days rather than hours. The supplied brick is a 2 A charger at pack voltage — roughly 96 W on a 48 V bike — and it already takes six to eight hours. USB cannot beat it and cannot even match it.
The one case where USB-C is relevantis small battery-and-charger combinations on very light bikes and scooters, which are not what this site covers, and the controller on a value e-bike’s charge port is not one of them. If a listing claims USB-C charging for a 48 V e-bike battery, treat the claim the way you would treat a range claim with no watt-hour figure behind it.
Self-contained or hardwired: the only distinction that matters
Four products, two categories, and the category is a bigger decision than the brand.
| Product | Type | Power source | Published output | What it asks of the bike |
|---|
| RAYCCI 8.2 in extender | Self-contained | Built-in 4000 mAh cell | Not published | None - touches no bike wiring |
| Redcomets 7.8 in extender | Self-contained | Built-in 4000 mAh cell | Not published | None - touches no bike wiring |
| Jurtmy mount with USB port | Hardwired | Bike pack, states 48 V | 2 A | Needs a fused accessory feed |
| EXTRACTME dual USB-C | Hardwired | 12 V only | 30 W PD / QC 3.0 | Needs a DC-DC converter on a 48 V bike |
Self-containedmeans the accessory carries its own lithium cell and you charge it indoors from a wall socket. It cannot affect the bike, because it is not connected to it — it is a power bank in a shape that bolts to a handlebar. The limit is capacity: 4000 mAh at a cell voltage of 3.7 V is about 14.8 Wh, which is most of one phone charge and not two.
Hardwiredmeans the port is fed from the bike’s battery. On an e-bike that is sold with a labeled accessory output — some do have one, usually a small connector near the controller intended for lights — this is clean, convenient and gives you effectively unlimited phone power from a pack with 300 to 1,000 Wh in it. On a bike without one, the only way to do it is to tap the main pack or the controller’s light circuit, and that is where this gets serious: you are adding an unfused load to the one component on the bike whose failure mode is a fire. The CPSC’s own micromobility guidance is about exactly that component. Our battery care guide is the companion reading.
Our position, stated plainly: if your bike does not have a labeled accessory output, buy a self-contained extender. The few dollars you save by hardwiring instead is not a good trade against an unfused tap into a pack you cannot get a wiring diagram for.
How much power do you actually need?
Work it out before you buy, because the answer is often “less than you think” and occasionally “much more”.
- A phone running turn-by-turn navigation with the screen on drains roughly a quarter to a third of a typical battery per hour. A 4000 mAh (about 14.8 Wh) bank refills a mid-size phone roughly once, which covers a two-to-three hour ride comfortably and does not cover a day of touring.
- A phone in your pocket with the screen off, logging a ride, barely needs anything. If this is you, you do not need any of these products — you need a phone mount.
- A dedicated bike computer runs for many hours on its own cell and is the better answer if the thing you actually want is speed, distance and a battery-free screen. See our computer picks.
- All-day touring with navigation is the one case for a hardwired port, because 500 Wh of pack is 34 times what the extenders hold. It is also the case where a plain 10,000 mAh power bank in a pannier, with a cable to the bars, beats every product on this page on cost and on risk.
The handlebar space problem, which is half the reason to buy one
A value e-bike has a crowded cockpit: an LCD display in the middle, a throttle on the right, two brake levers, and then everything you add — a front light, a bell or horn, a mirror, a phone mount. There is genuinely nowhere left to clamp anything.
That is why the two extenders here are the picks even for people who do not especially want a power bank. You are buying 7.8 or 8.2 inches of free 22.2 mm bar that sits forward of the display, and the charger comes along with it. Fit the extender, move the light and the computer onto it, keep the phone mount within reach, and the original bar goes back to being brakes and a throttle.
One caution on both: neither publishes an IP rating, and neither publishes an output wattage. Treat them as shower-resistant and as standard-speed charging, and if your bike lives outdoors under a cover, bring the extender in with the battery.
What we would skip
Any “USB-C e-bike charger” listing. See the arithmetic above. If it is cheap, it is a phone charger with e-bike words in the title; if it is expensive, it is a converter solving a problem you do not have.
Dynamo hub USB chargers, on this kind of bike. A dynamo front hub plus a USB converter is a genuinely good system on a touring bicycle. On a value e-bike it means rebuilding the front wheel, it adds drag to a bike whose range you are already managing, and it costs several times the price of every product here to deliver a few watts.
Splicing into the headlight circuit. It looks like the easy tap because the voltage is already stepped down, and on most value e-bikes that circuit is rated for a 6 W light and nothing else. It is not a power supply.
Leaving a power bank on the bars in freezing weather.Lithium cells lose usable capacity in the cold and charging a cold cell is the thing that damages it — the same rule that applies to your main pack, covered in our winter riding guide.
What we would actually buy

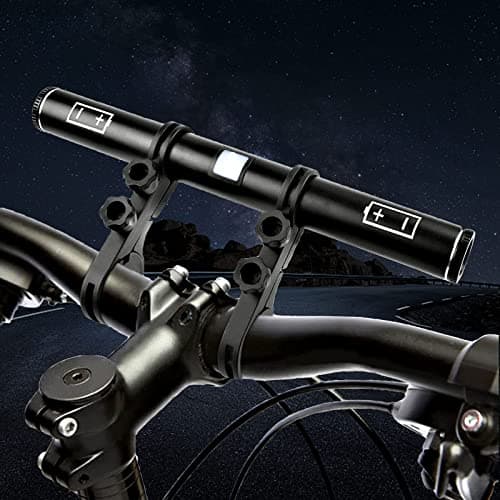

For most people: the RAYCCI 8.2 in extender with a 4000 mAh bank. The longest extension here, which is the one that actually clears a center-mounted display, plus a charging port and mount points for a light and a computer. Nothing to wire, nothing to go wrong on the bike itself.

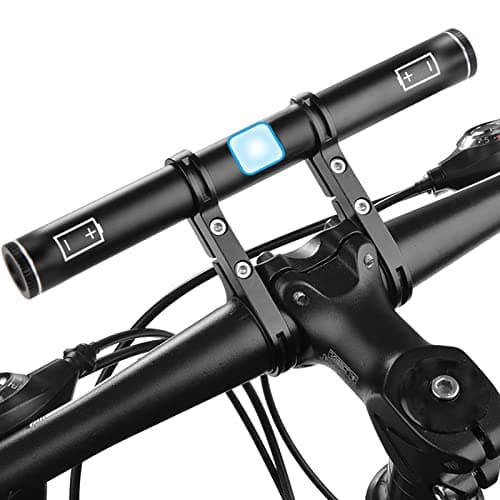

If the longer bar will not fit: the Redcomets 7.8 in. The same idea and the same 4000 mAh cell on a slightly shorter bar, and the longer-established of the two listings. Stock was limited when we checked.

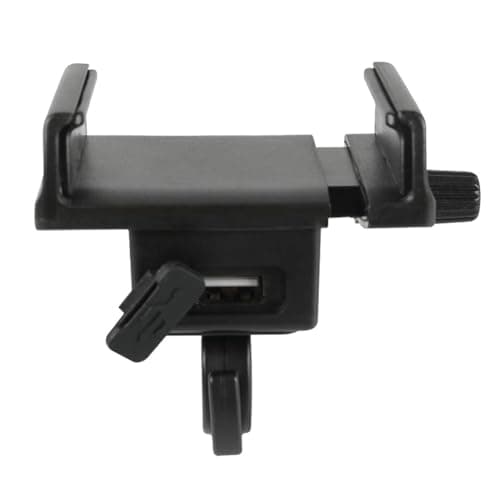

If your bike has a labeled accessory output: the Jurtmy mount. It is the only unit here that states an e-bike pack voltage (48 V) rather than a motorcycle’s 12 V, and it combines the cradle and the port in one clamp. Fit it to a proper fused accessory feed or do not fit it at all.

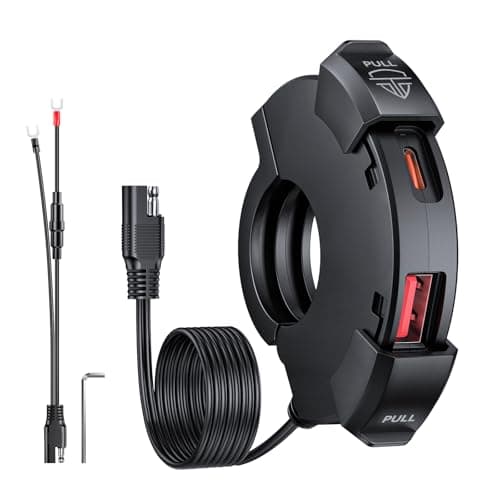

If you are building a 12 V circuit anyway: the EXTRACTME. 30 W USB-C Power Delivery plus Quick Charge 3.0 in a body 0.51 in wide is by far the fastest port on this page, and it is a motorcycle part: on a 36 V, 48 V or 52 V pack it needs a step-down converter you also have to buy and wire. That is a conversion-build project, which is the context our conversion kit page covers.
And the cheapest honest answer of all, which no affiliate link here will earn us anything for: a 10,000 mAh power bank you already own, in a jersey pocket or a frame bag, with a short cable to the phone. It holds roughly five times what these extenders do, it costs nothing extra, and it does not care what voltage your bike is.
